Xelynx dashboard provides detailed insight into your network. A breakdown of the details is given below
Information about each item on the page is given below.
 |

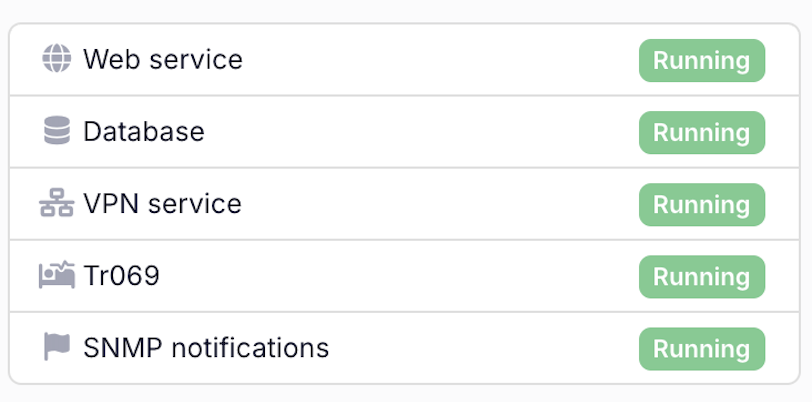

Web server: Status of web server running on your instance of xelynx. Database server: Status of database server running on your instance of xelynx. VPN Server: Status of VPN server running on your instance of xelynx. Tr069 server: Status of Tr069 server running on your instance of xelynx. SNMP notification service: Status of SNMP Notifications service running on your instance of xelynx. |
 |

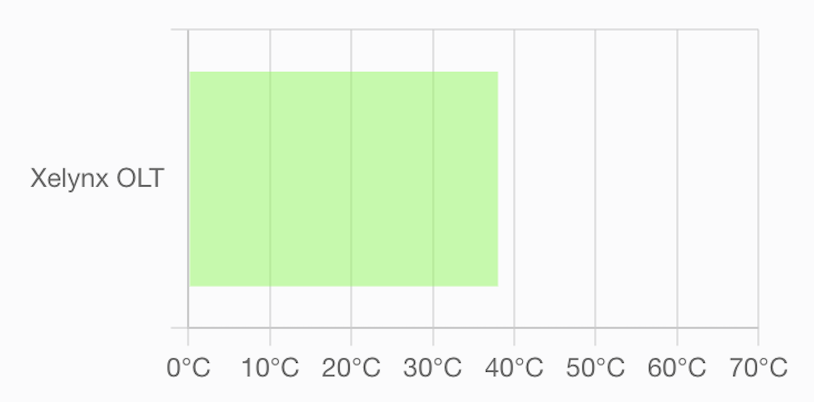

OLT Temperatures: Graph of all OLTs temperatures. Colour tells the severity of it. |
 |

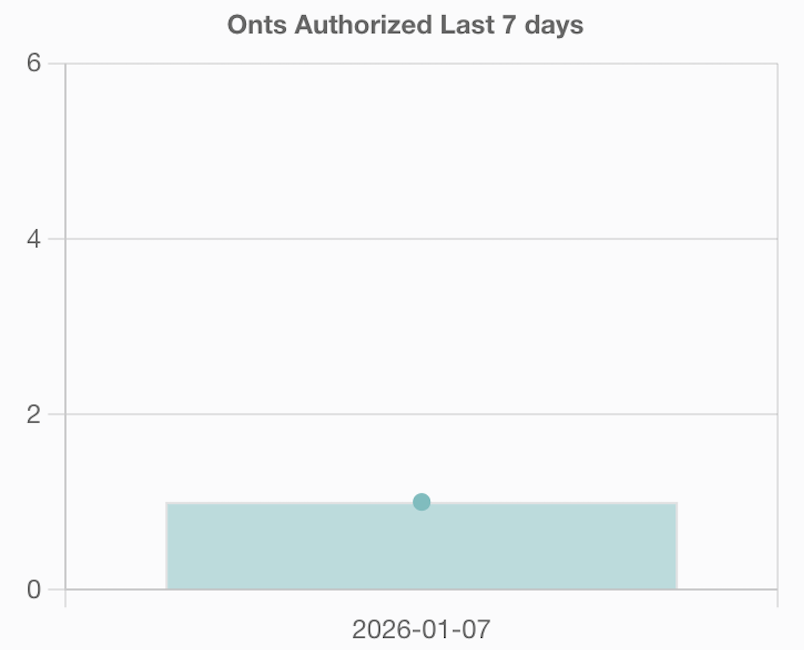

ONUs added: Graph of number of ONUs added in last 7 days. |

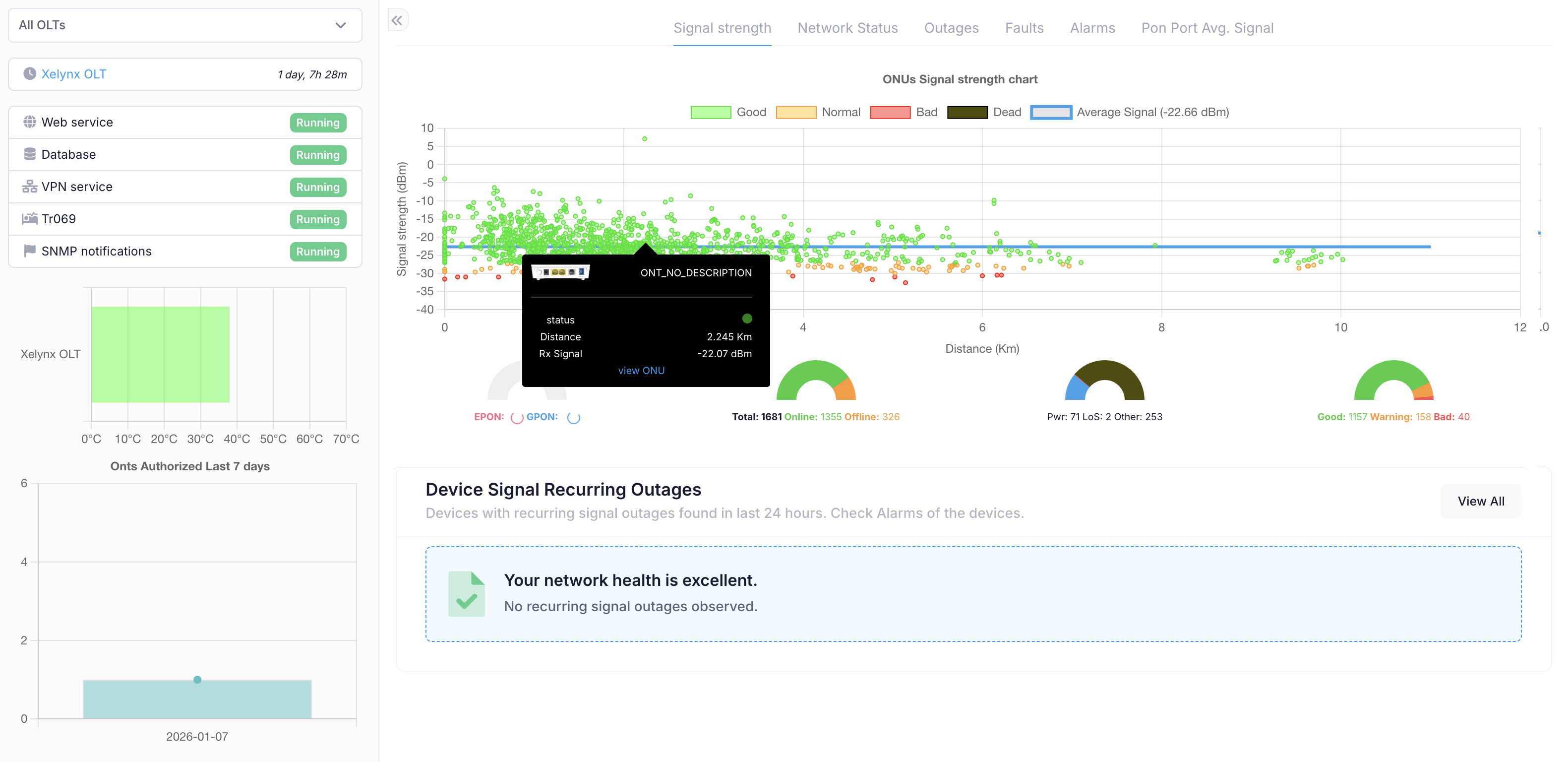

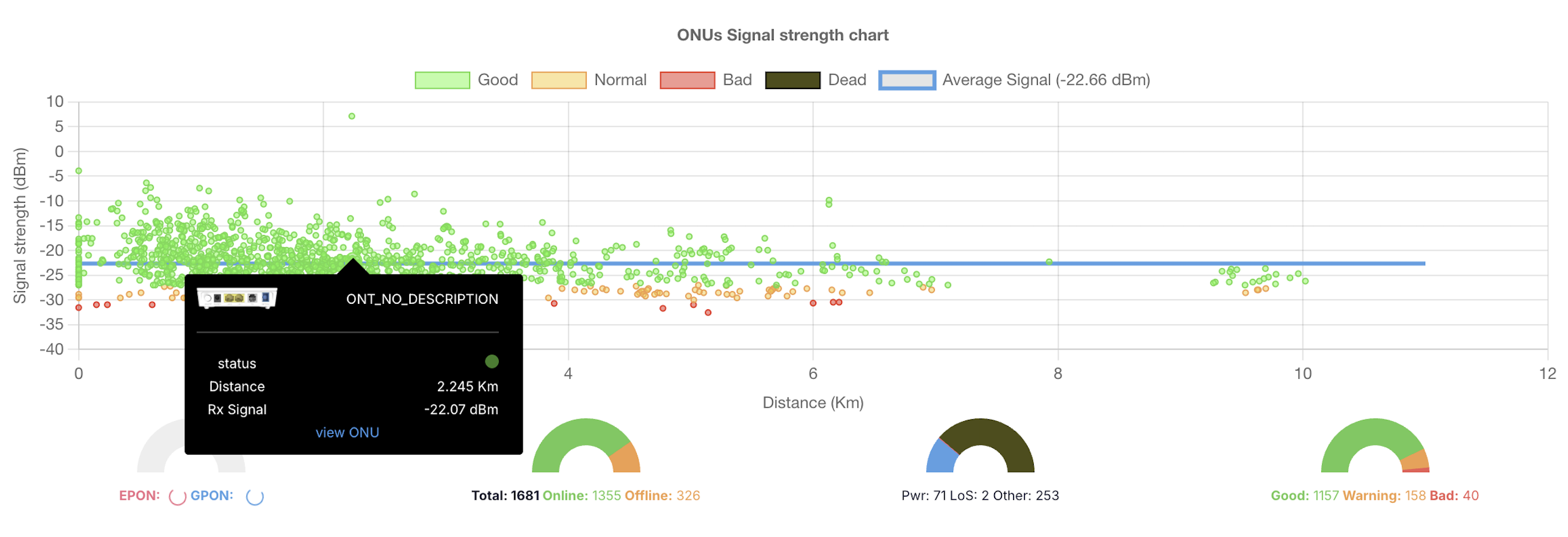

This is very important graph as it tells the distance of an ONU from OLT and its signal. All points represent ONUs with colour telling the signal level as good. bad or in warning range. hovering on each point lets you see the details about the ONU and you can open the ONU from here as well. There are 4 small graphs which show any unconfigured ONUs, Total/Online/Offline ONUs, offline ONUs and reasons (LoS/Fiber cut, Electricity issue, other) and a graph to show number of ONUs as good, bad or in warning level. There is a horizontal blue line in the graph which shows the average signal strength of all ONUs on your network.

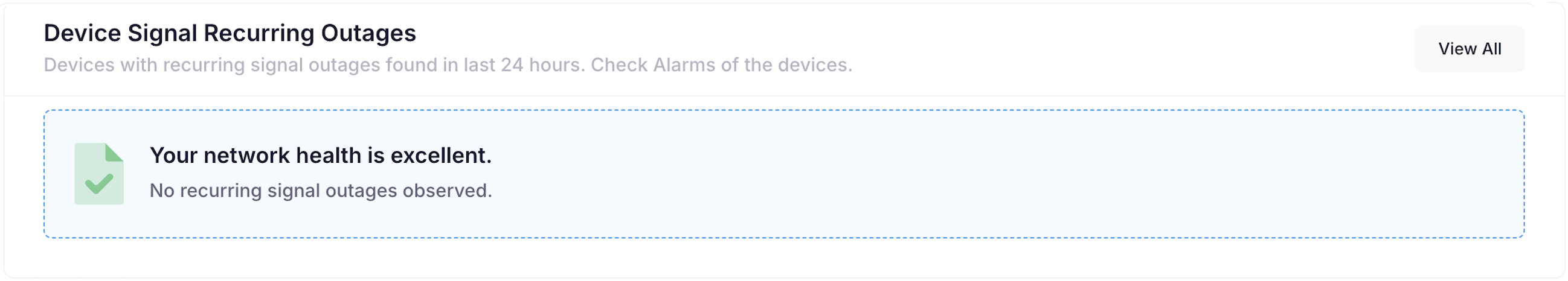

It is an AI generated list of all the ONUs which are having issues in last 24 hours. This is very helpful since you can fix the issue before customer realizing it. It tells you which device got offline for ore than 10 times in last 24 hours and what was the reason for that.

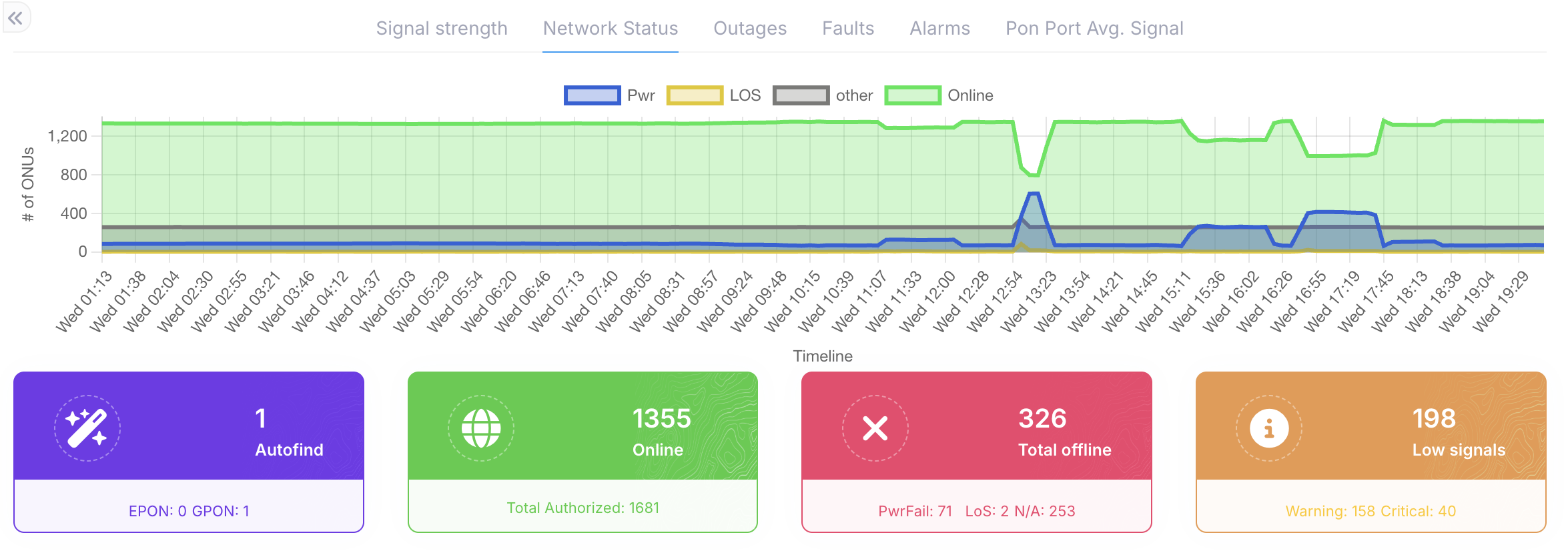

Network status tab provides a quick information about your network status.
Main information displayed is about number of online ONUs, offline ONUs and each offline is defined by its status.
 |

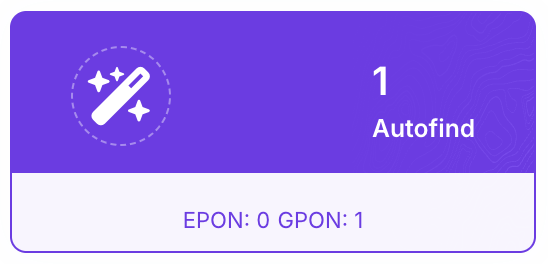

Autofind: Shows number of unconfigured ONUs in your Network. |
 |

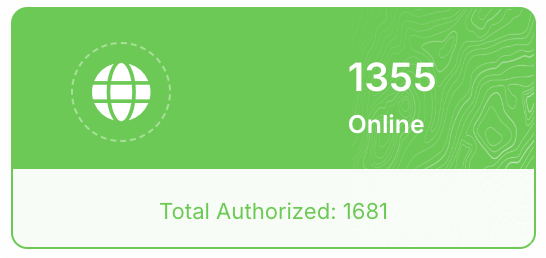

Total: Shows number of all configured ONUs and number of online ONUs. |
 |

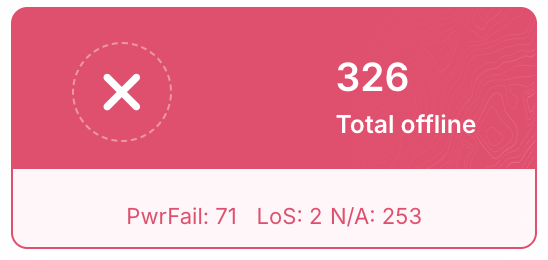

Offline ONUs: Shows number of offline ONUs in your Network. |
 |

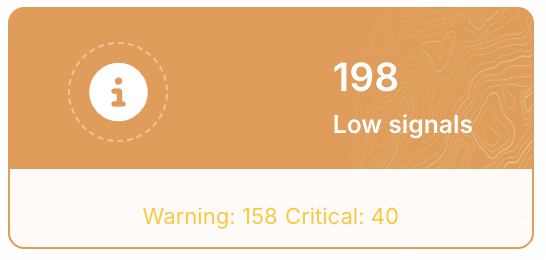

Signal level: Shows signal levels of all ONUs in your Network. |

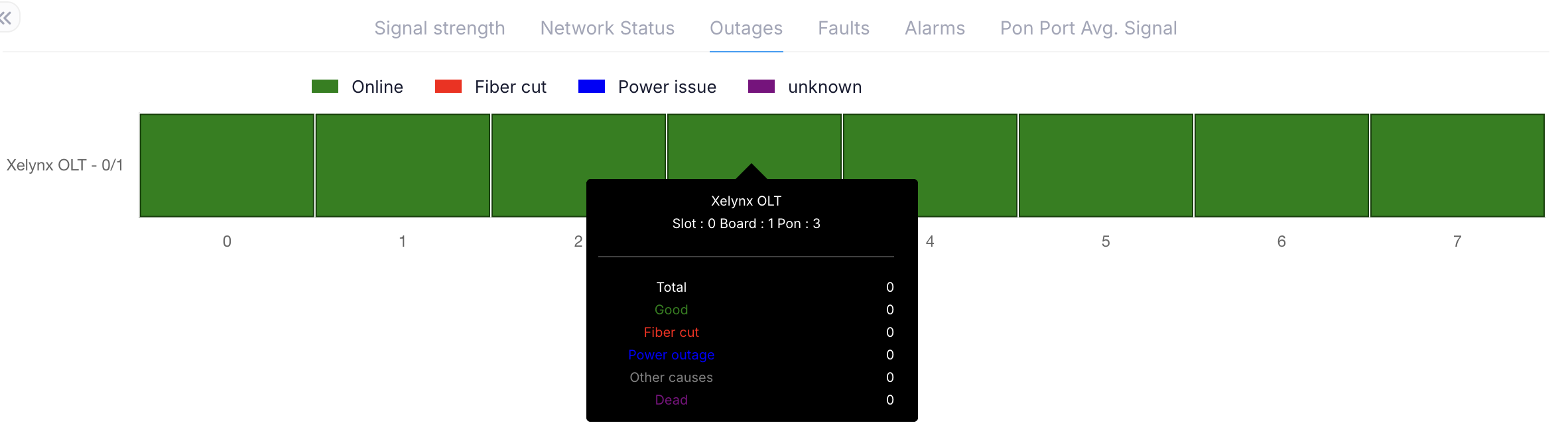

Outages on each port is shown in this graph. Percentage of online/offline devices of each port is shown.

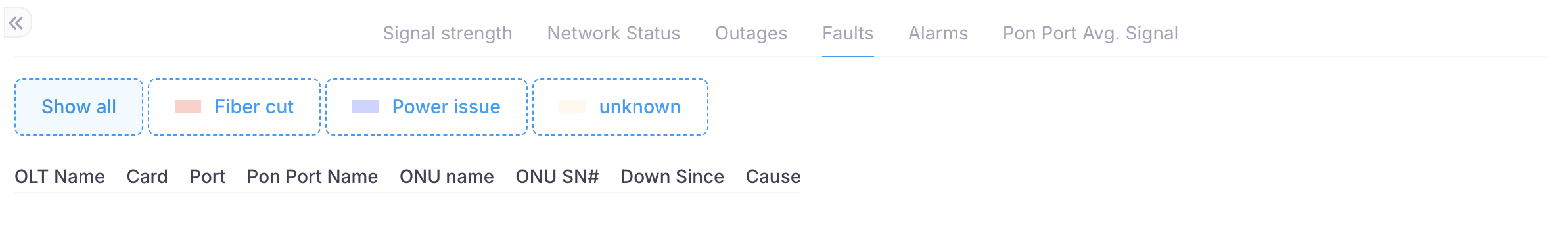

All ONUs with faults are shown here. ONUs are grouped together by PON ports. ONUs and PON ports are quickly traceable from this tab.

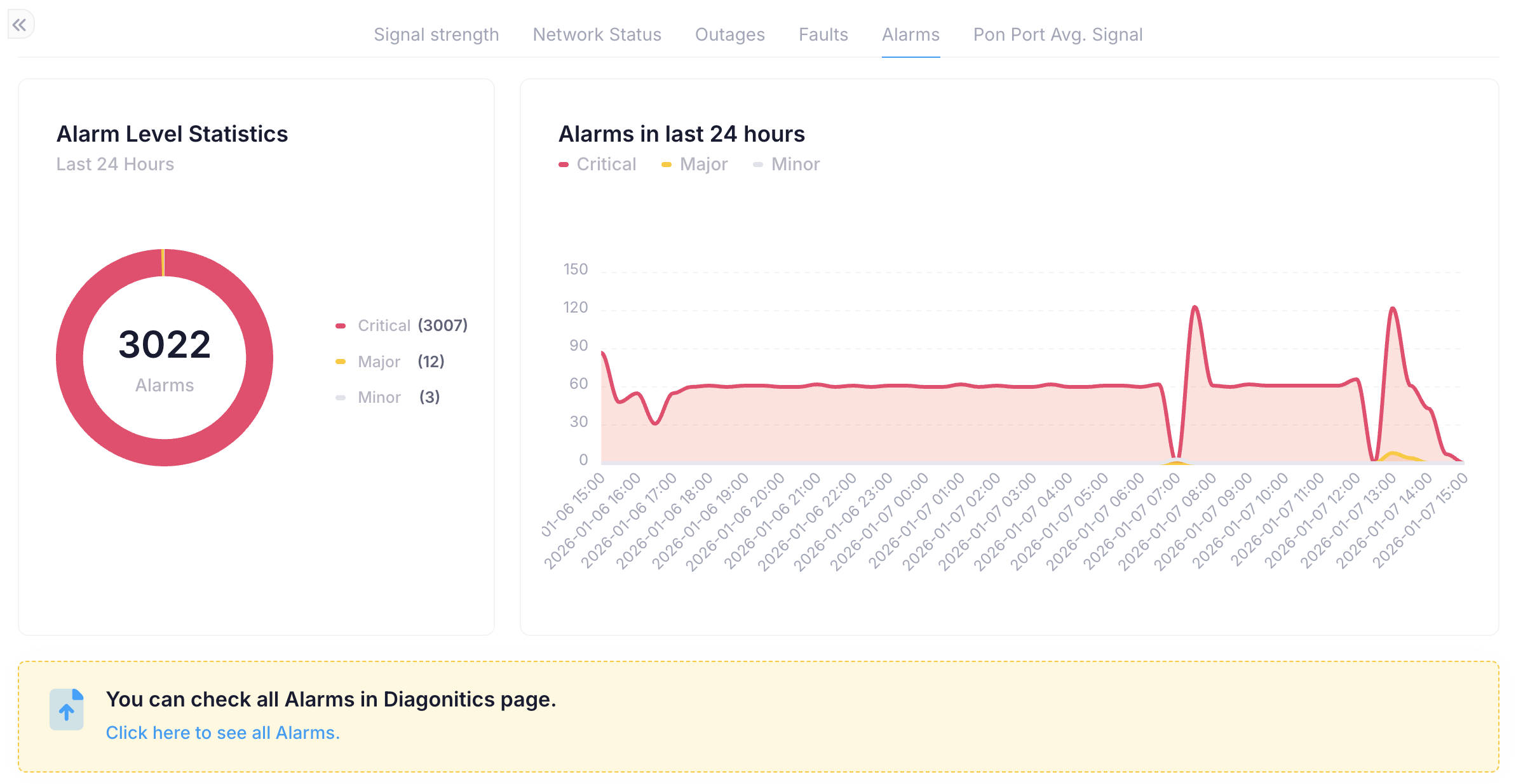

A graph on this page shows all alrms on the OLTs with their sverity level.

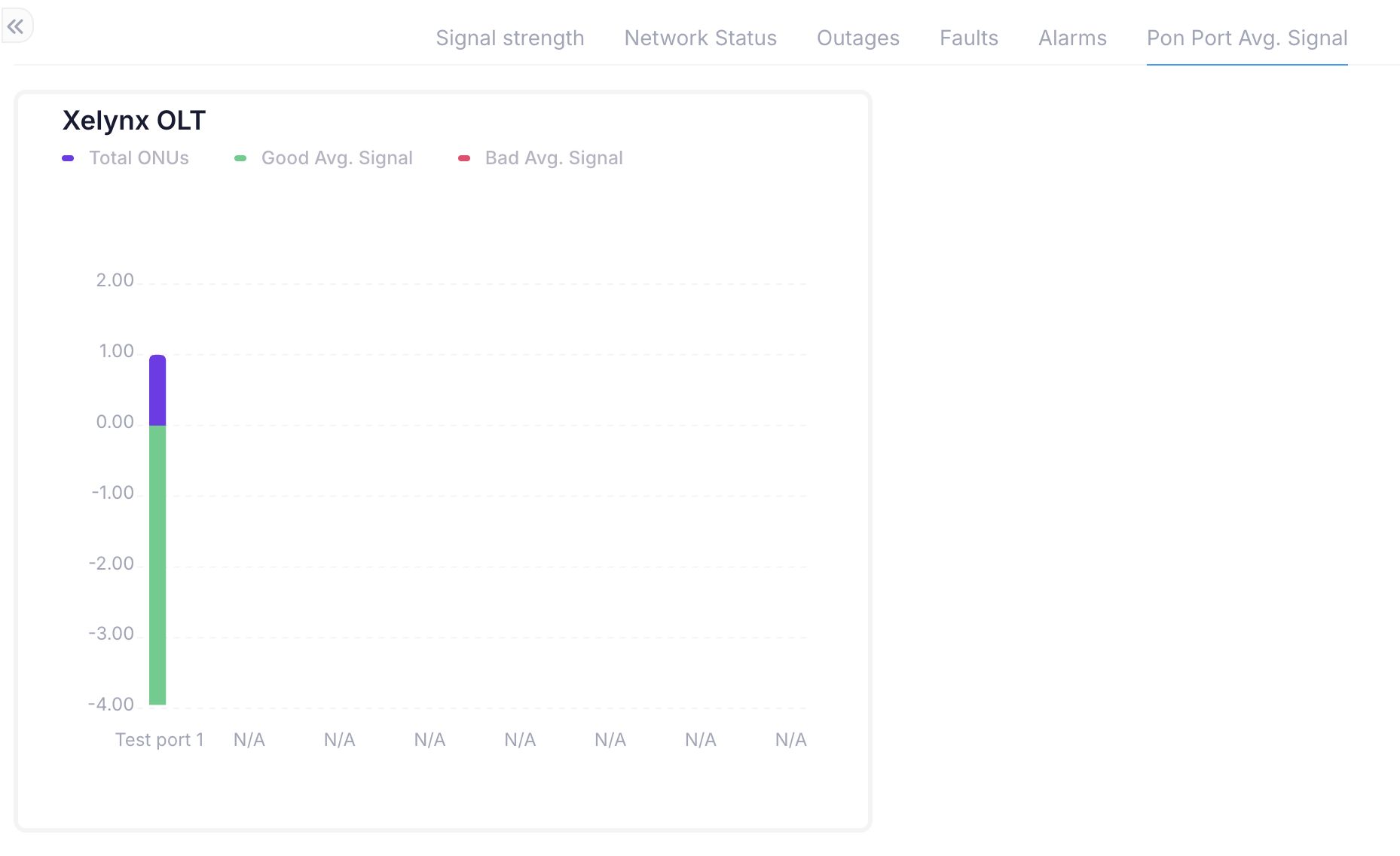

A graph showing total number of ONUs on each PON port and average signal on each PON port. This helps you easily find PON ports having issue and get them fixed.
