Xelynx makes it easy for you to configure the OLT, its ports, VLANs, uplink ports, IPs. Xelynx also makes it easy to monitor your OLT's crucial details like bandwidth, power, graphs and Alarams.
There are various tabs to conrtol and monitor multiple settings and configuratoins. You will find details about each item below.

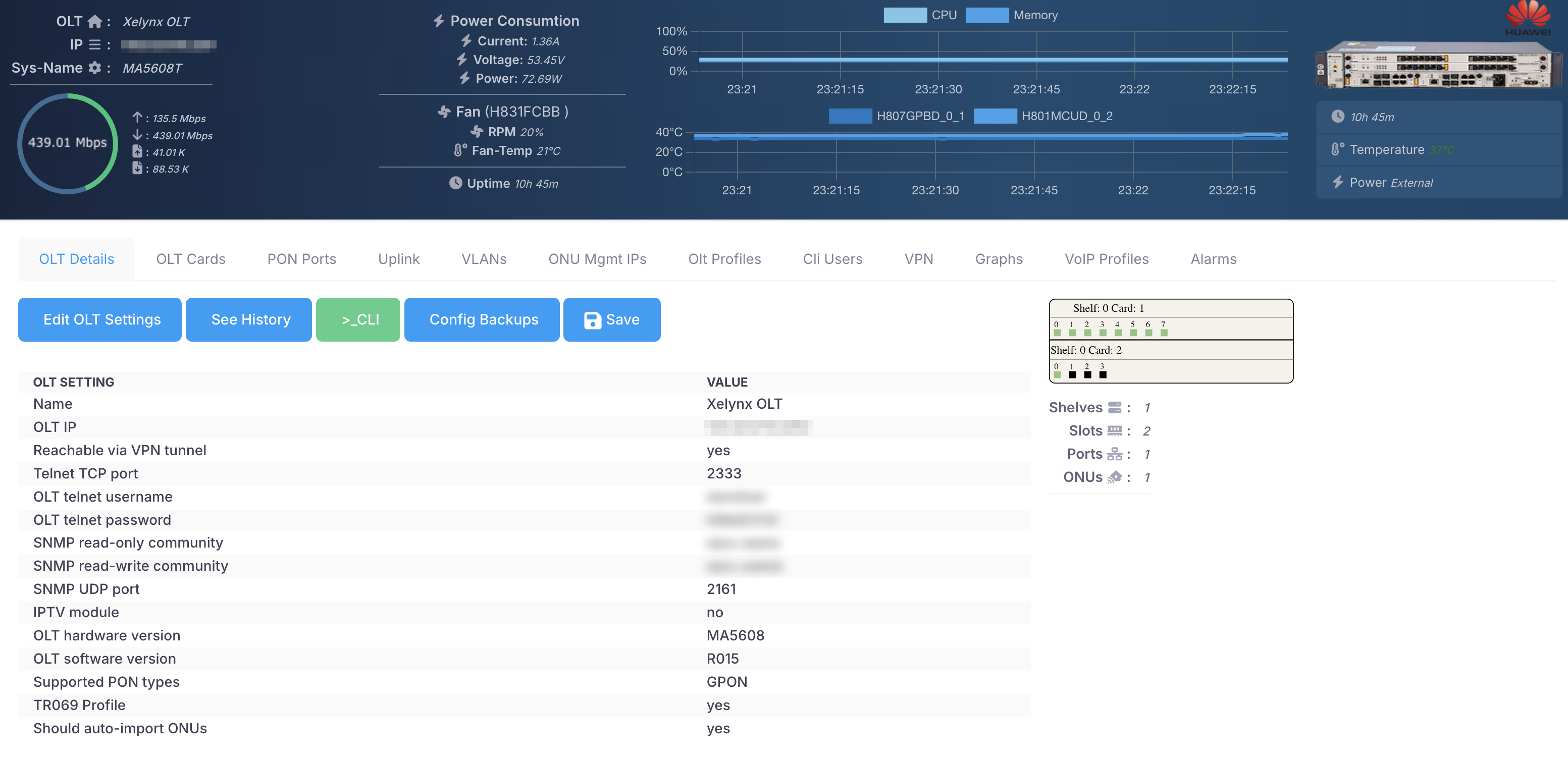

On this tab Xelynx gives an overview of your OLT.
Information about each item on the page is given below.
 |

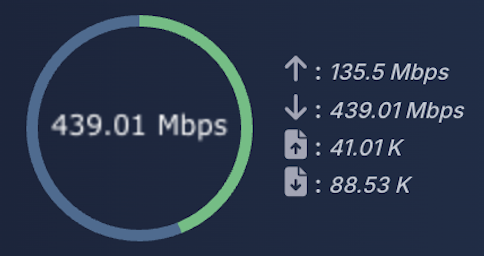

Bandwidth Utilization: This displays graph of total live download speed of OLT. It also displays upload speed. Bandwidth Packets: This display live number of downloaded and uploaded packets. |
 |

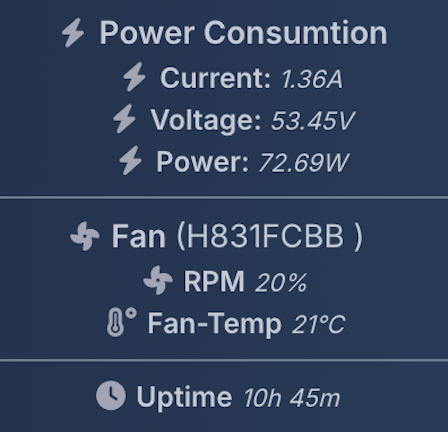

Power consumption: This displays current, voltage and power consumption of OLT. In case an external power supply is used then it displays that. Fan status: This display Fan stats like RPM and temperature. Up-time: This display up time of the OLT. |
 |

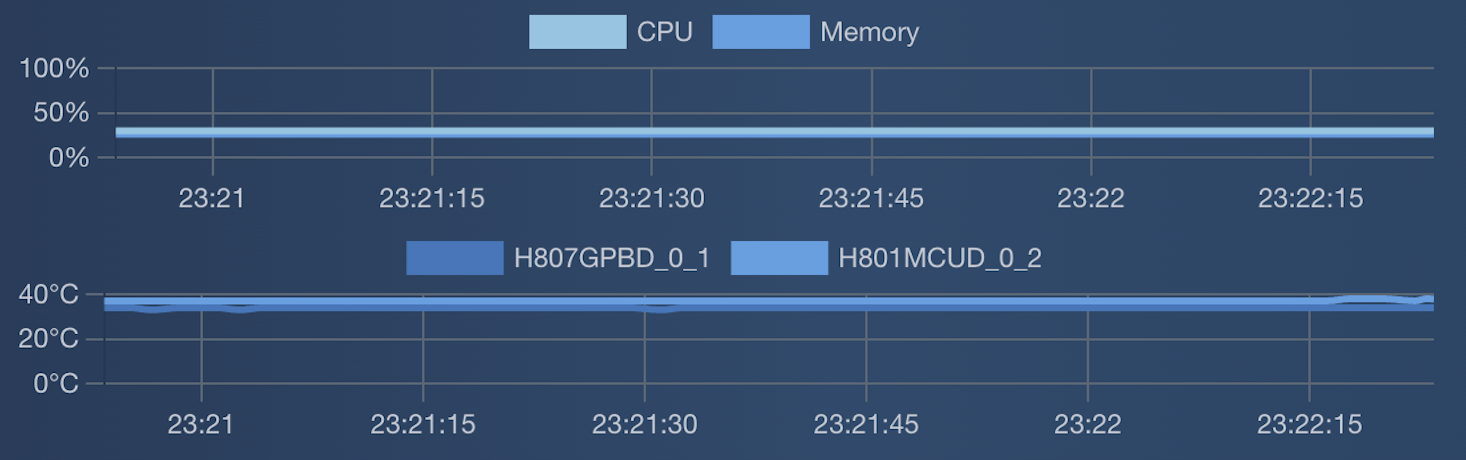

CPU consumption: This displays CPU consumption of OLT. Memory consumtion: This display Memory consumption of OLT. Card Temperature: This display temperature of cards on OLT. |
 |

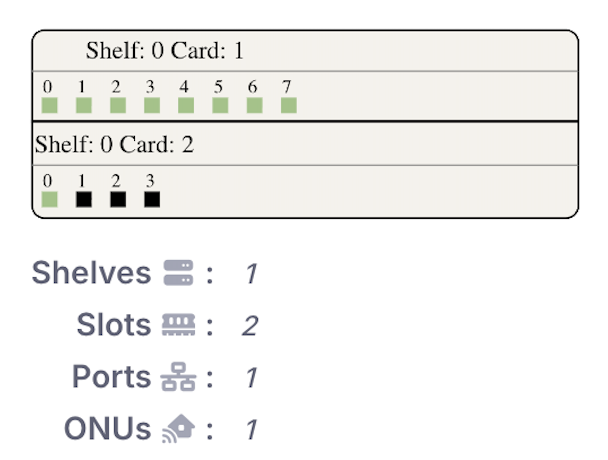

PON ports: This displays number of pon ports in each card and their status. Uplink Ports: This display number of uplink ports and their status. Other: This display total shelves, slots, ports and ONUs on the OLT. |
In addition to above, you can open telnet session to OLT from here. Also, you can create backups of configuration on OLT and do a manual Save.

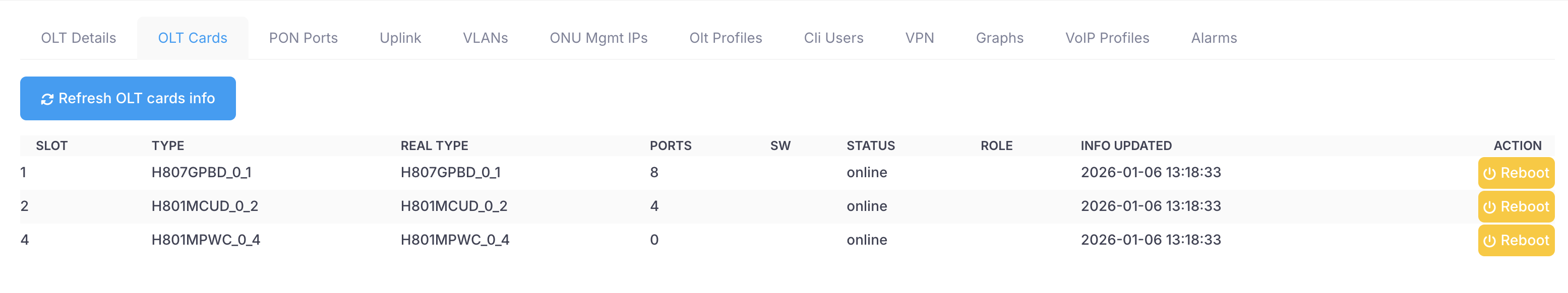

On this tab Xelynx gives list of all cards on your OLT. It gives you details about their status, Model and number of ports if any. You can also reboot cards from here.

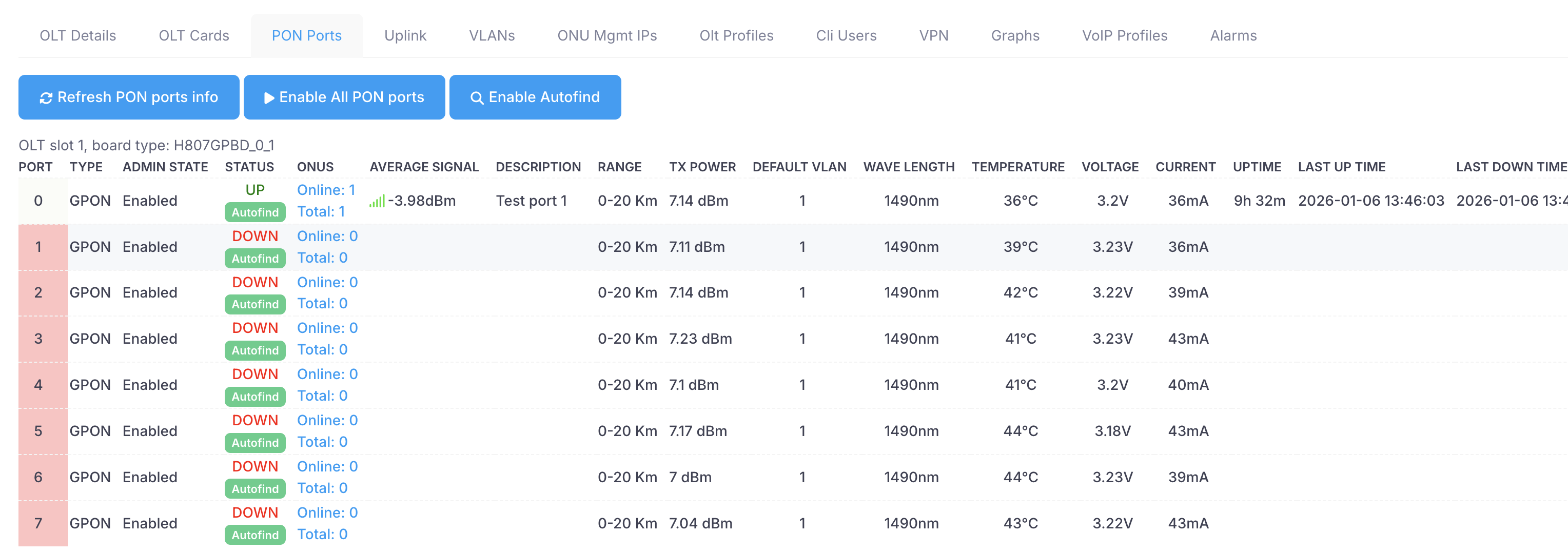

On this tab Xelynx gives list of all PON ports on your OLT. It gives you details about every single detail about the port (27 different fields). You can also enable autofind on PON ports from here.

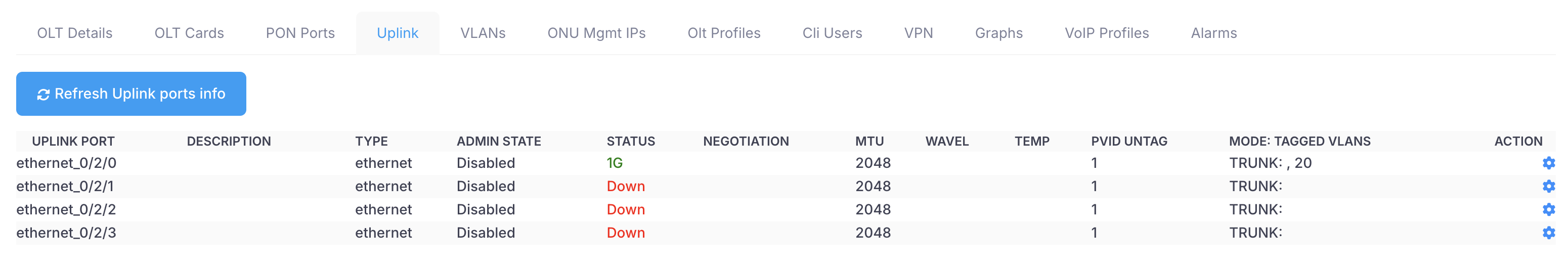

On this tab Xelynx gives list of all uplink ports on your OLT. You can tag and un-tag VLANs from uplink ports from here.

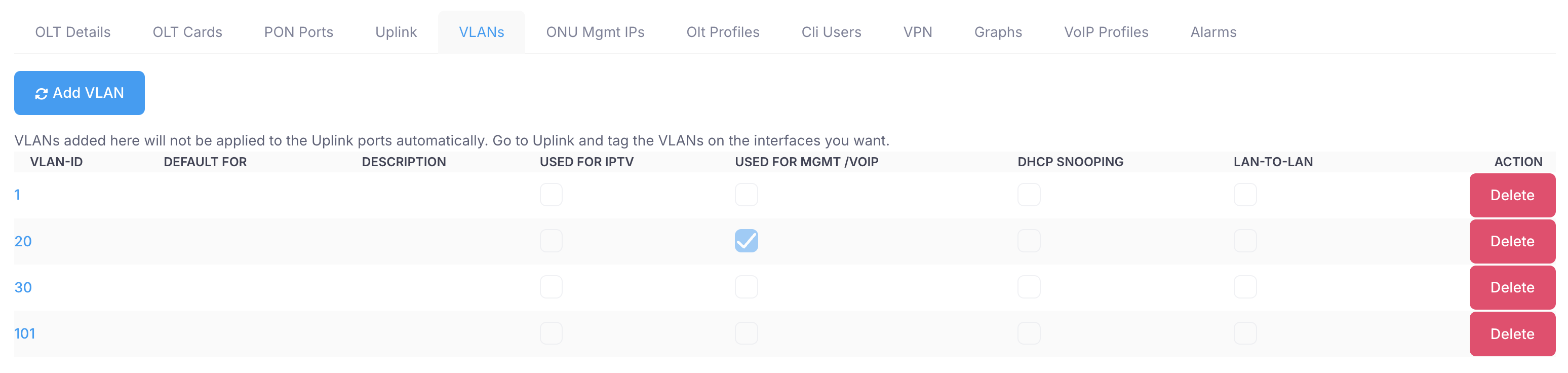

On this tab you can add/modify VLANs.

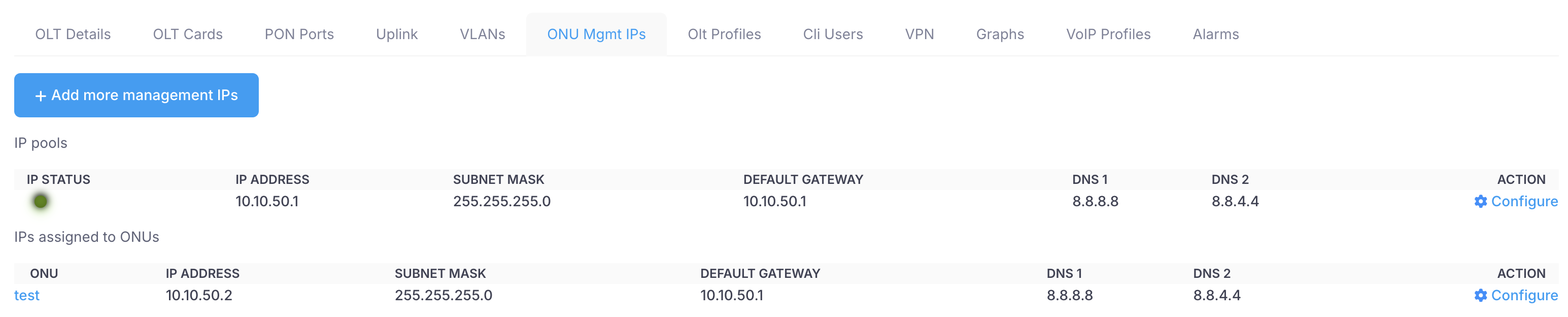

On this tab you can add/modify IP pools to be used for Management of ONU devices. It displays you if IP pools are reachable and also list all ONUs with corresponding Management IPs.

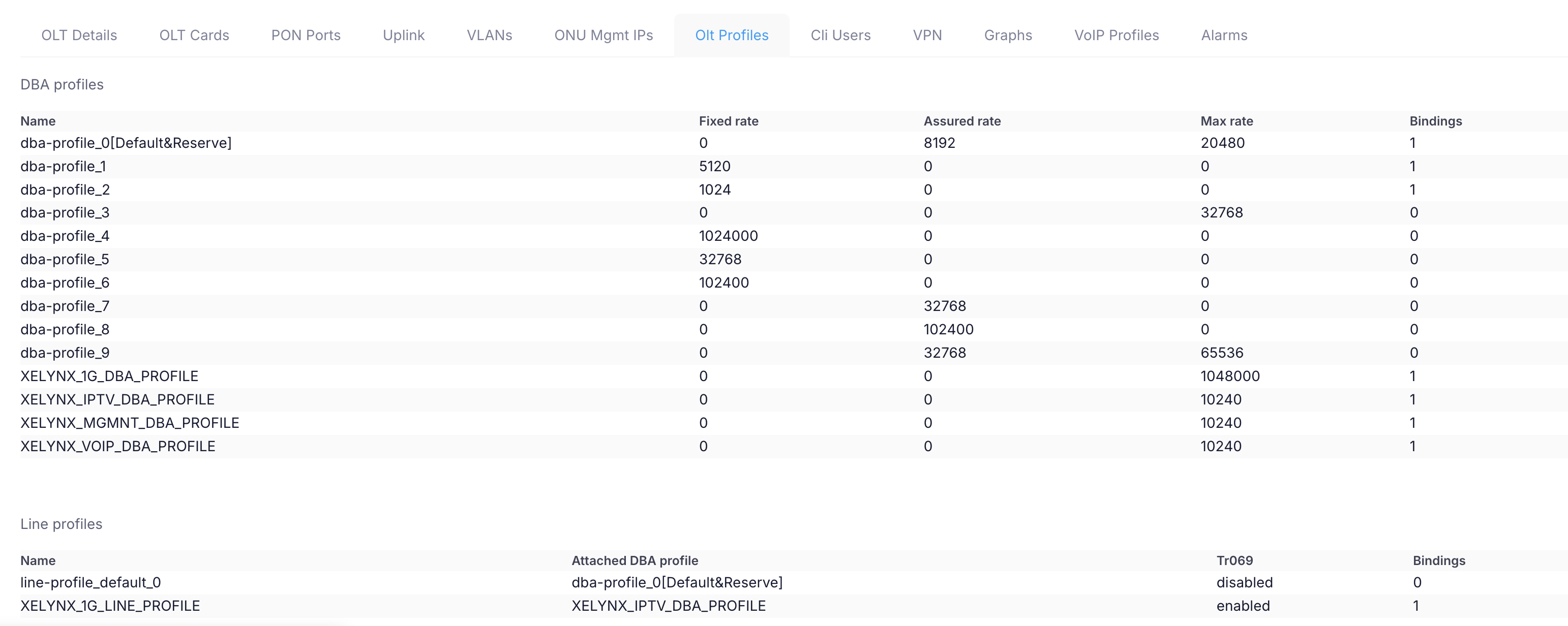

On this tab Xelynx lists all profiles i.e. DBA profiles, Line profiles, service profiles and speed profiles (Traffic tables).

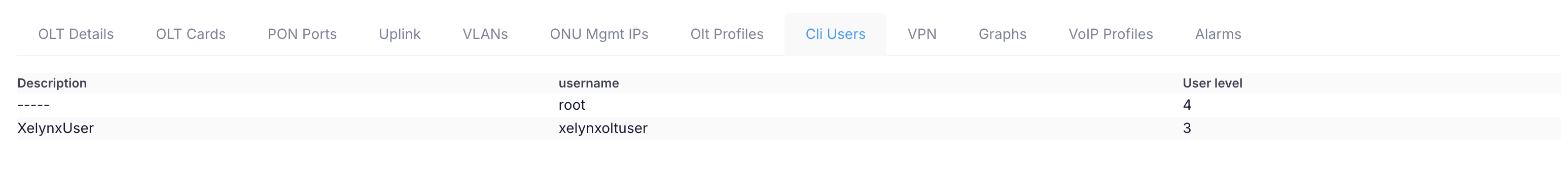

On this tab Xelynx list all CLI users on OLT and their level.

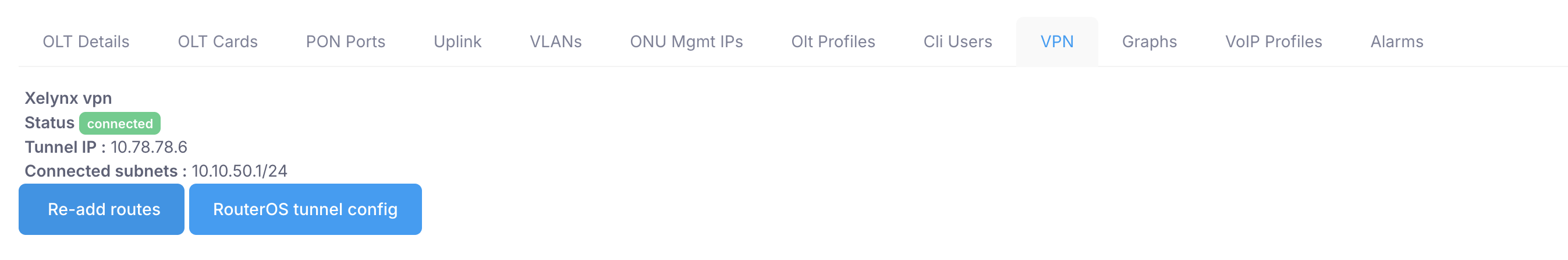

This dsplays VPN status and all the pools routed on this VPN (all management pools. It also gives you the script to re-add the VPN client on mikrotik router. Also, you can re-add routes on the server in case routes are not being routed on Xelynx server.

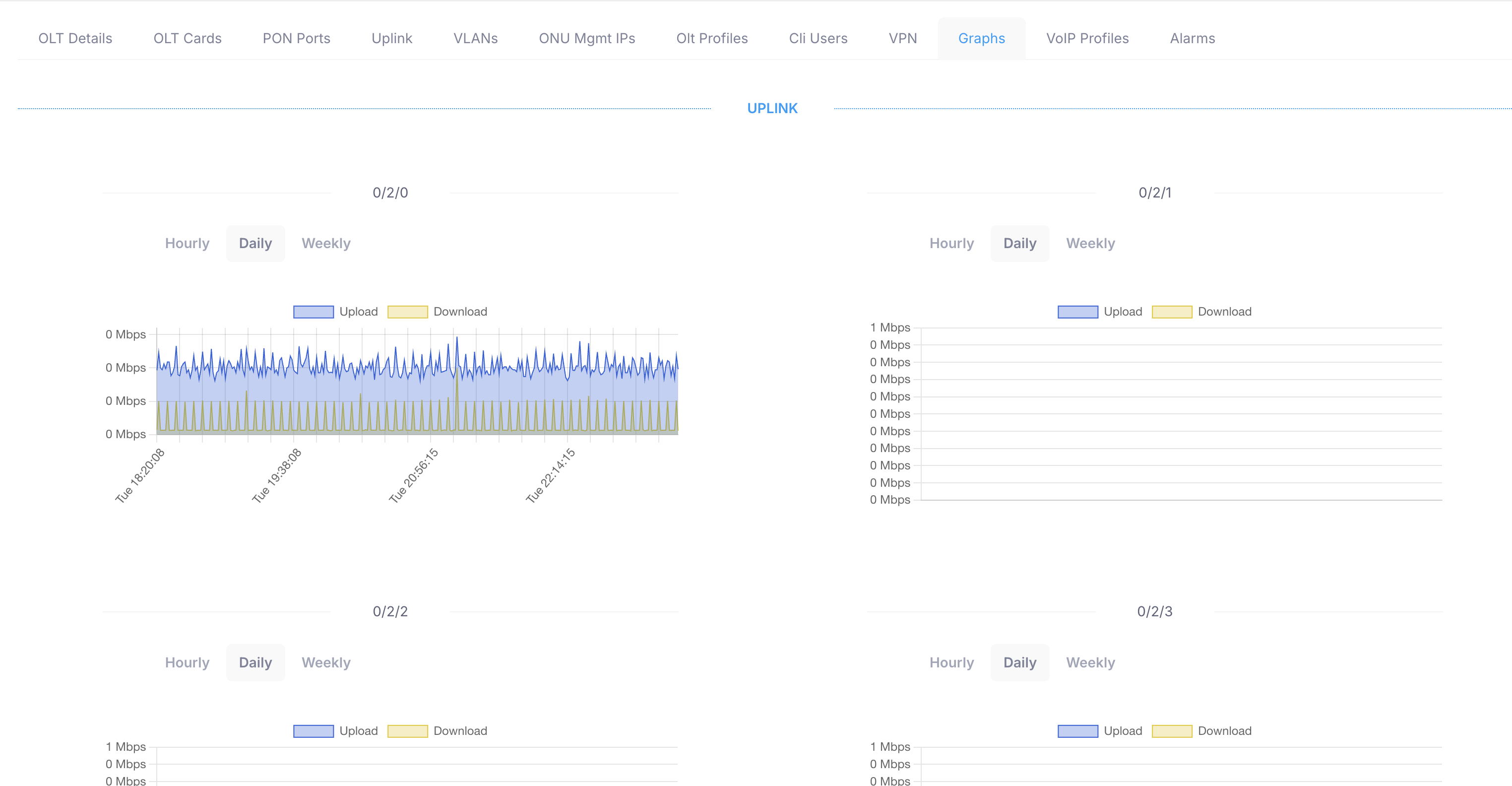

This dsplays bandwidth utilization graphs of all uplin k and PON ports. You can see it in hourly, daily or weekly level.

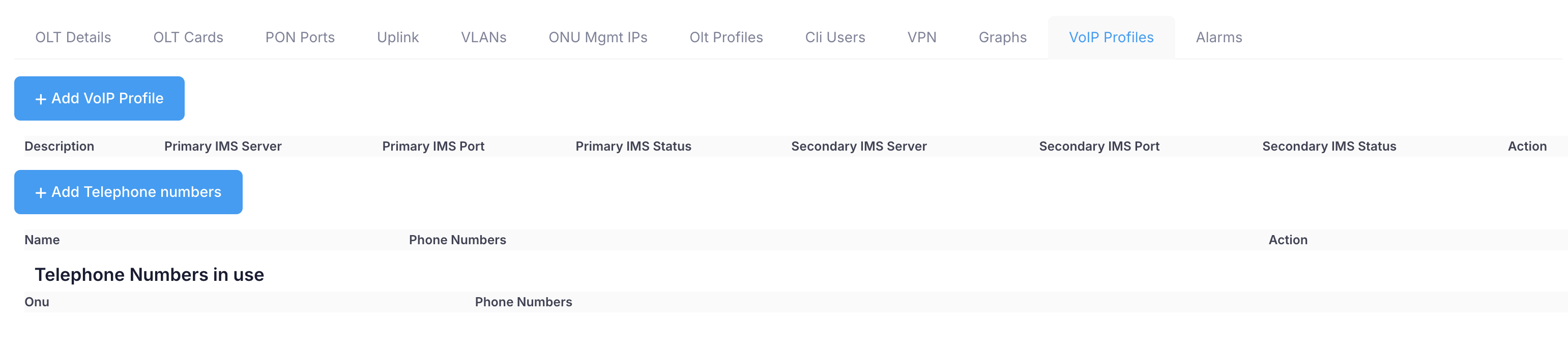

You can add/modify/delete VoIP profiles from here. You can assign numbering pool which can be used on ONUs.

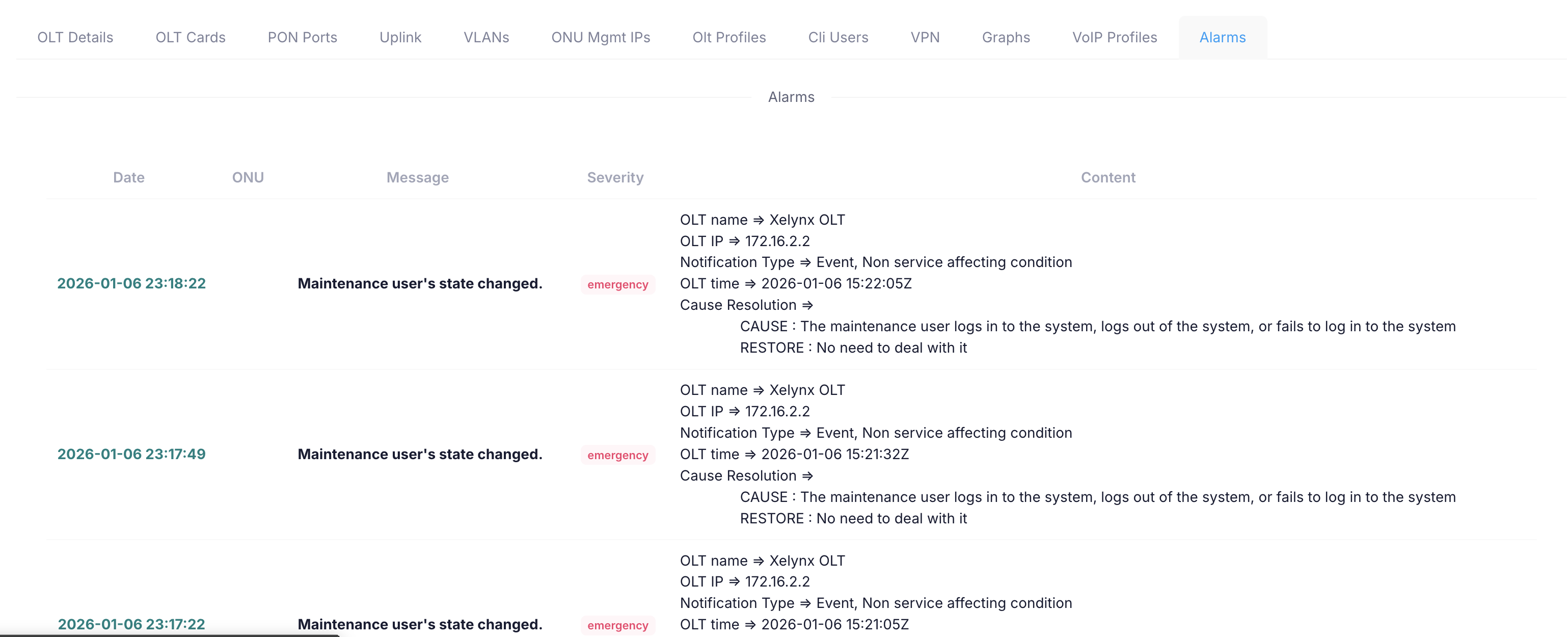

This tab displays all the alarms generated on the OLT. It shows their alarm level and description and detail of each alarm.
